Admin API/MCP logs

The Admin API/MCP logs screen displays the logs of the management operations performed through the Admin API and the Admin MCP. Operations performed directly in the admin panel are recorded in the Admin panel logs.

Accessing the screen

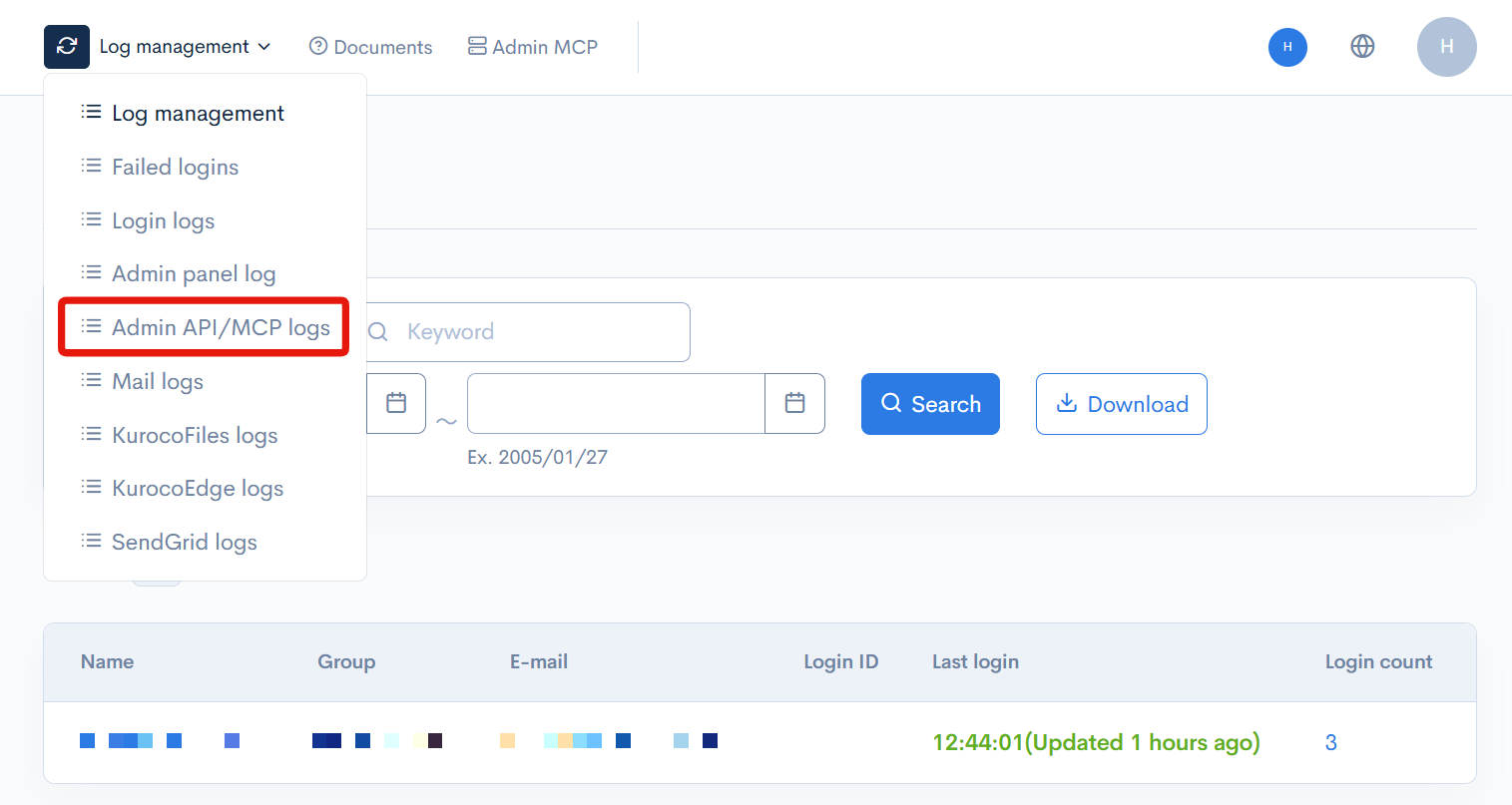

In the left sidebar menu, click [Operation] -> [Log management].

Click the [Log management] link above the page title, and select [Admin API/MCP logs] in the dropdown menu.

Field descriptions

Filter conditions

You can filter the logs using the keyword search, the log date/time and the advanced search functions.

Keyword search

Enter the search keyword in the [URI] text box and click [Search] to filter logs whose URI contains the specified keyword.

Timestamp search

Select the date and time range for the timestamp and click [Search].
The designated logging period is 35 days. When specifying past log dates, please make sure to specify within the 35-day range.

Advanced search

Click the [Advanced search] button to input advanced filter conditions.

The following input options are available:

Field	Description	Specifiable conditions
Host	Site accessed.	Available search operations
Log level	Log level indicating the importance of the message.	Available search operations
Action	Gateway the request came through.	Action
HTTP method / credential	HTTP method of the request and the credential used for the authentication.	Available search operations
Operation	Requested endpoint, or the executed operation.	Available search operations
Execution time / result	Execution time of the request, or the result of the operation.	Available search operations
Body size	Size of the response.	Available search operations
URI	URI of the endpoint the request was made to.	Available search operations
Client IP address	IP address of the user who attempted the access.	Available search operations
Member ID	Member ID of the user who attempted the access.	Available search operations
Application request ID	Unique request ID used by Kuroco.	Available search operations
User agent	User agent of the client used for the access.	Available search operations

The advanced search function allows you to concatenate multiple conditions using AND or OR.

• AND: Returns only data matching all the specified conditions in your search.
• OR: Returns data matching any of your specified conditions.

Available search operations

You can specify the following operations in the search conditions:

Operation	Input type	Returned data
contains	Text string	Entries matching part of the search term.
not contains	Text string	Entries not matching any part of the search term.
=	Alphanumeric string	Entries exactly matching the search term.
!=	Alphanumeric string	Entries not exactly matching the search term.
<	Alphanumeric string	Entries less than the search term.
>	Alphanumeric string	Entries greater than the search term.
<=	Alphanumeric string	Entries less than or equal to the search term.
>=	Alphanumeric string	Entries greater than or equal to the search term.
starts with	Text string	Entries beginning with the search term.
not starts with	Text string	Entries not beginning with the search term.
ends with	Text string	Entries ending with the search term.
not ends with	Text string	Entries not ending with the search term.
in	Alphanumeric string	Entries matching any of the search terms (for multiple search terms only).
not in	Alphanumeric string	Entries not matching any of the search terms (for multiple search terms only).

Sort

Under "Sort", you can specify the sort key and display order of the search results.

• ASC: Ascending, from oldest to newest.
• DESC: Descending, from newest to oldest.

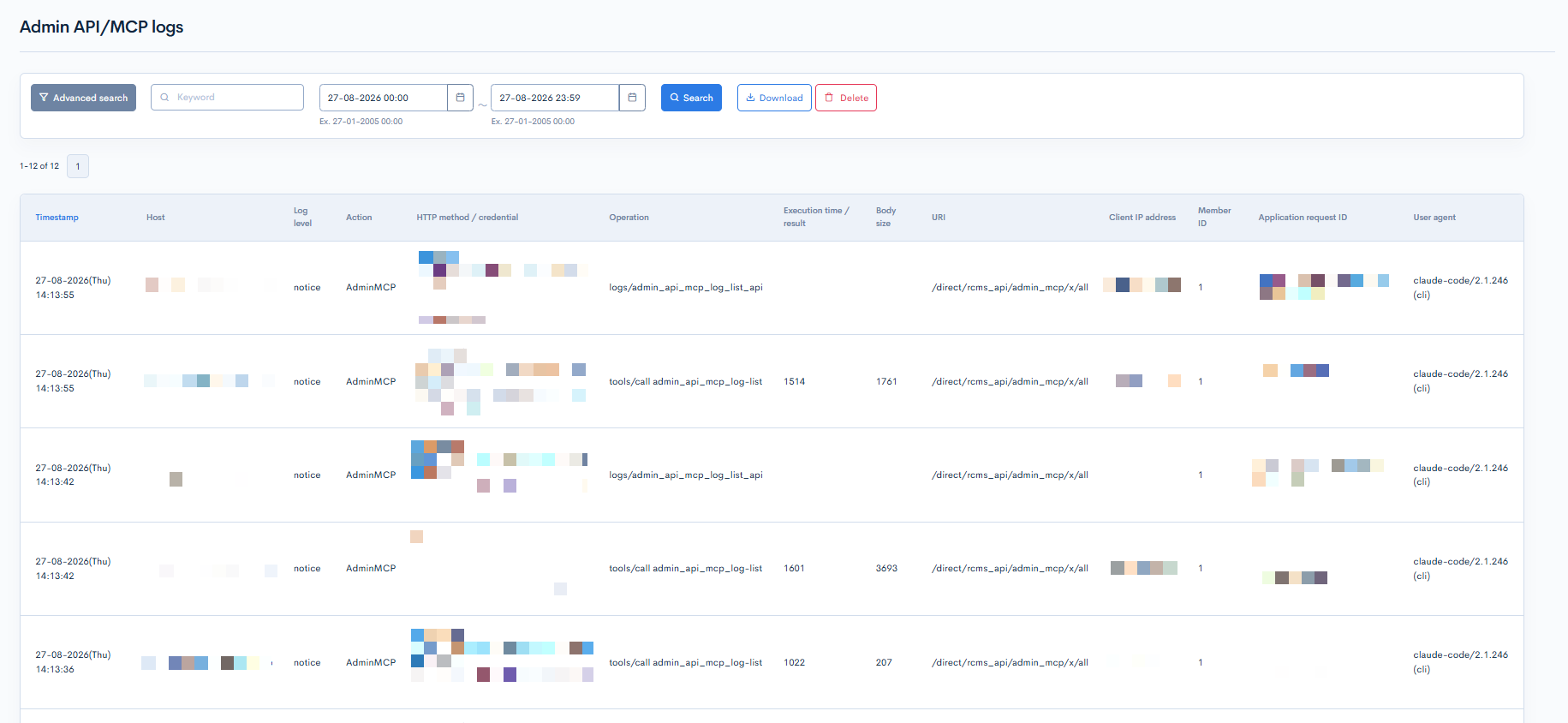

Log entries

The columns displayed for the log entries are as follows:

Column	Description
Timestamp	Date and time the log was recorded.
Host	Site accessed.
Log level	Log level indicating the importance of the message.
Action	Gateway the request came through. See: Action below for details.
HTTP method / credential	HTTP method of the request and the credential used for the authentication.
Operation	Requested endpoint, or the executed operation. See: Recorded log types below for details.
Execution time / result	Execution time of the request in milliseconds, or the result of the operation. See: Recorded log types below for details.
Body size	Size of the response in bytes.
URI	URI of the endpoint the request was made to.
Client IP address	IP address of the user who attempted the access.
Member ID	Member ID of the user who attempted the access.
Application request ID	Unique request ID used by Kuroco.
User agent	User agent of the client used for the access.

Action

Value	Description
AdminAPI	Request made through the Admin API.
AdminMCP	Request made through the Admin MCP.

[Action] shows these values in the log list. In the advanced search, the [Action] dropdown shows the options as [Admin API] and [Admin MCP]. Select one of them to display the logs of that gateway only.

Recorded log types

Two kinds of logs are recorded for a single request:

Type	Operation	Execution time / result	Body size
Access log	Requested endpoint, or the JSON-RPC method name.	Execution time of the request in milliseconds.	Size of the response in bytes.
Executed operation log	Executed operation.	Summary of the result.	Not displayed.

Buttons

Button	Description
Search	Search based on the above settings.
Download	Download a list of the displayed logs.
Delete	Delete a list of the displayed logs.

Log list download

After click [Download] button, the download settings will open.

Field(s)	Description
Charset	Character encoding of the output CSV file.
Cancel	Cancel downloading.
Download	Execute downloading.

Related documents

• Log management
• Admin panel logs
