Failed logins

The failed logins screen displays the records of failed login attempts. These records are used to count the failed attempts for the login lock.

Accessing the screen

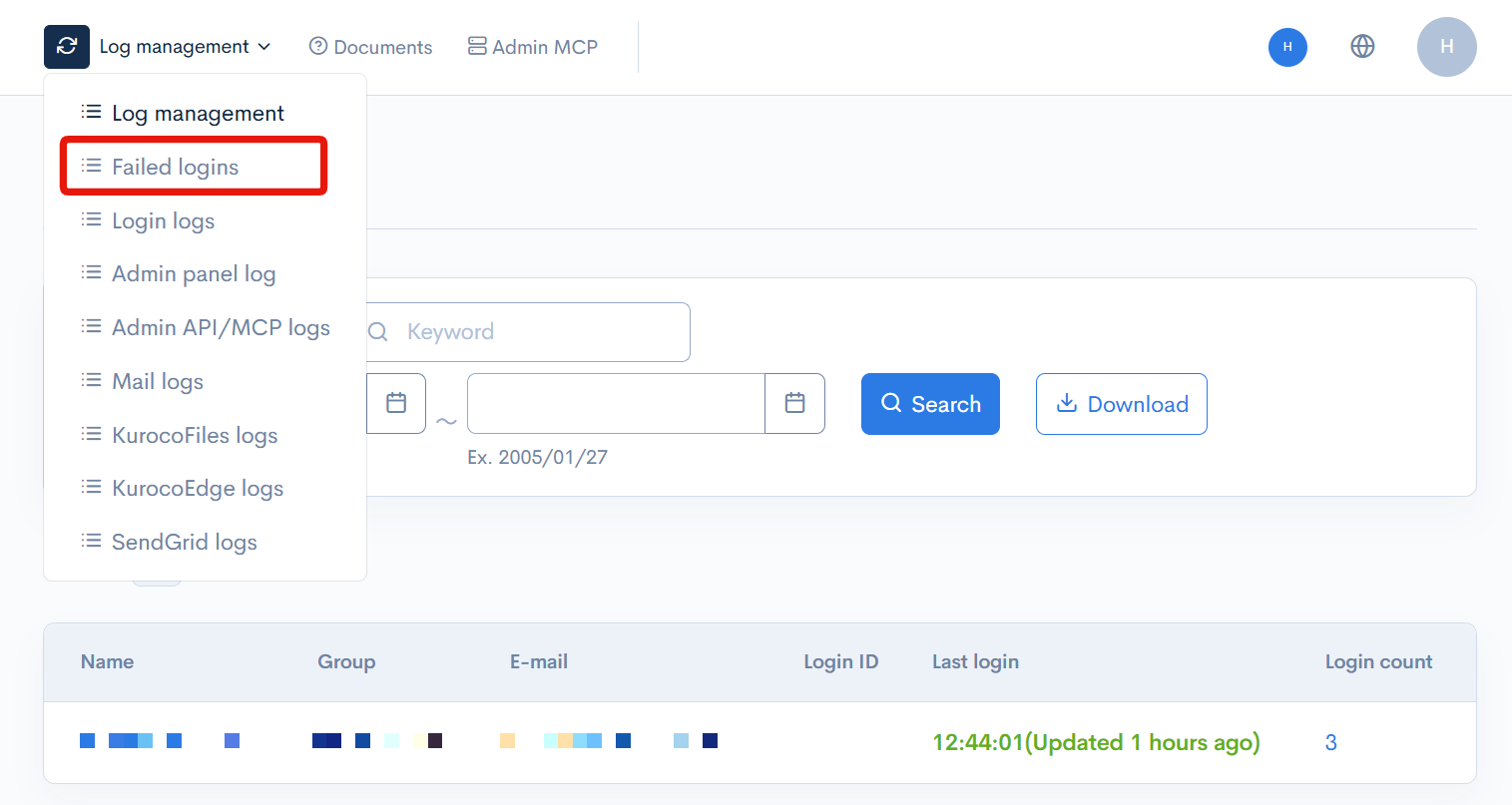

In the left sidebar menu, click [Operation] -> [Log management].

Click the [Log management] link above the page title, and select [Failed logins] in the dropdown menu.

Field descriptions

Filter conditions

You can filter the logs using the keyword search, the log date/time and the advanced search functions.

Keyword search

Enter the search keyword in the keyword text box and click [Search] to filter logs whose login ID or IP address contains the specified keyword.

Timestamp search

Select the date and time range for the timestamp and click [Search].
When the screen is opened, the start date is set to one month before the current date by default.

Advanced search

Click the [Advanced search] button to input advanced filter conditions.

The following input options are available:

Field	Description	Specifiable conditions
Timestamp	Date and time the log was recorded.	Specify a date and time range.
Login ID	Login ID used for the login attempt.	Available search operations
Client IP address	IP address of the user who attempted the login.	Available search operations
User agent	User agent of the browser used for the login attempt.	Available search operations

The advanced search function allows you to concatenate multiple conditions using AND or OR.

• AND: Returns only data matching all the specified conditions in your search.
• OR: Returns data matching any of your specified conditions.

Available search operations

You can specify the following operations in the search conditions:

Operation	Input type	Returned data
contains	Text string	Entries matching part of the search term.
not contains	Text string	Entries not matching any part of the search term.
=	Alphanumeric string	Entries exactly matching the search term.
!=	Alphanumeric string	Entries not exactly matching the search term.
<	Alphanumeric string	Entries less than the search term.
>	Alphanumeric string	Entries greater than the search term.
<=	Alphanumeric string	Entries less than or equal to the search term.
>=	Alphanumeric string	Entries greater than or equal to the search term.
starts with	Text string	Entries beginning with the search term.
not starts with	Text string	Entries not beginning with the search term.
ends with	Text string	Entries ending with the search term.
not ends with	Text string	Entries not ending with the search term.
in	Alphanumeric string	Entries matching any of the search terms (for multiple search terms only).
not in	Alphanumeric string	Entries not matching any of the search terms (for multiple search terms only).

Sort

Under "Sort", you can specify the sort key and display order of the search results.

• ASC: Ascending, from oldest to newest.
• DESC: Descending, from newest to oldest.

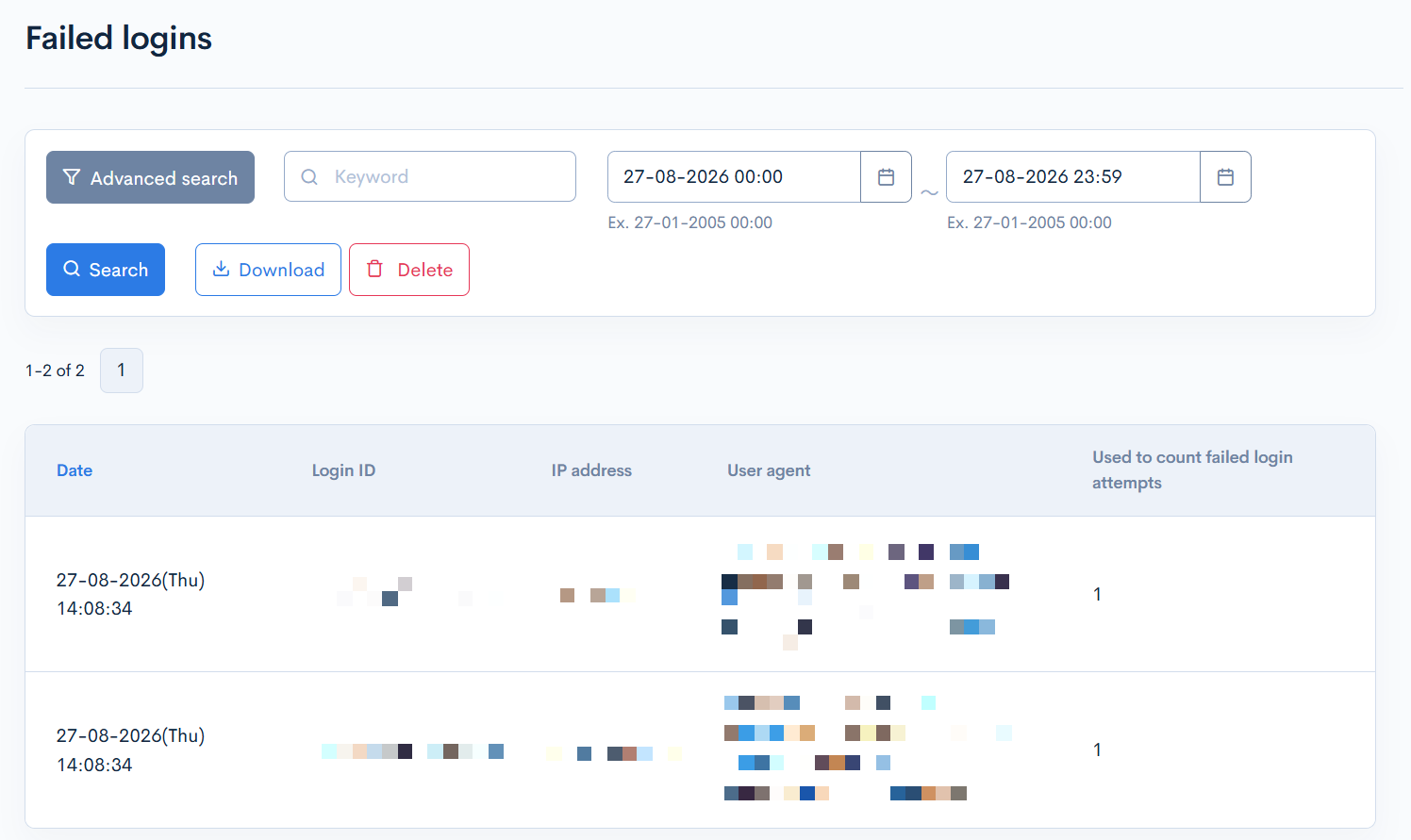

Log entries

The columns displayed for the log entries are as follows:

Column	Description
Date	Date and time the failed login was recorded.
Login ID	Login ID used for the login attempt.
IP address	IP address of the user who attempted the login.
User agent	User agent of the browser used for the login attempt.
Used to count failed login attempts	Whether the record is counted toward the failed attempts for the login lock. See: Failed login count below for details.

Failed login count

When a login fails, a record with [Used to count failed login attempts] set to 1 is added. Once the member with that login ID logs in successfully, the records of that member are updated to 0 and are no longer counted toward the failed attempts for the login lock.

Buttons

Button	Description
Search	Search based on the above settings.
Download	Download a list of the displayed logs.
Delete	Delete a list of the displayed logs.

info

The [Delete] button is displayed only for administrators who have the delete permission for log management.

caution

Specify the start or the end of the timestamp before clicking the [Delete] button. If no timestamp is specified, an error is displayed and nothing is deleted.

Log list download

After click [Download] button, the download settings will open.

Field(s)	Description
Charset	Character encoding of the output CSV file.
Cancel	Cancel downloading.
Download	Execute downloading.

Related documents

• Log management
• Login log
